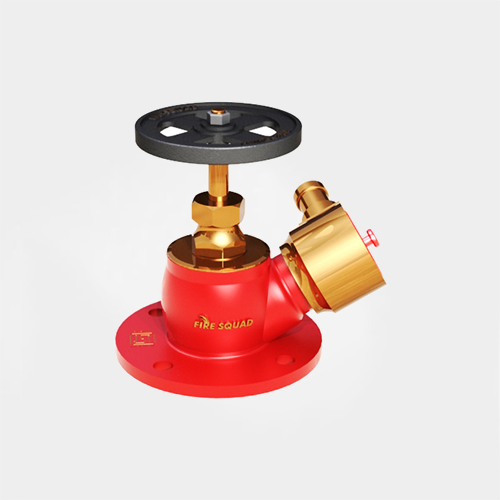

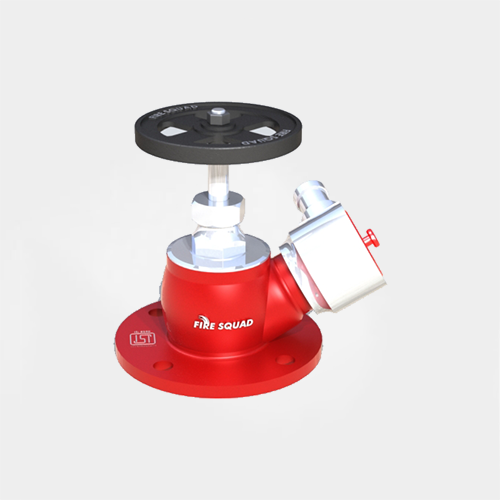

Landing Valve
Characteristics :
- ISI marked and CE certified
- All Parts Made of Aluminum
- Blank cap material made of PVC Plastic
- Disc facing rubber is of replaceable type
- Hand wheel material made of grey cast iron
- The hand wheel is BLACK painted and body to RED
- Possible to replace the gland seal when under pressure with the valve fully closed
- Description
- Additional information
- Store Policies
- Inquiries
Description
- Outlet Size : 63 mm
- Hydraulic test for Body at 21 kgf/cm2
- Flange : 200 mm OD with 16 mm Holes
- Pressure Rating : Low Pressure Valve
- Certification : IS: 5290-1993 , CE , ISO
- Valve Type : ISI –TYPE A , Oblique, flanged Inlet
- Working Pressure : 15 kgf/cm2 (Bar) Maximum
- Valve Seat Test for water tightness at 14 kgf/cm2
- Material : Gun Metal, Stainless Steel & Aluminium
- Water Flow Rate : >900 liters per min @ 7 kgf/cm2 Outlet Pressure
- Other : Complete with Female adapter, PVC blank cap chained with body
